TS-VPG25

20 kWe / 25 kVA
Marine Generator Set

GENERAL INFORMATIONS

DIMENSION AND WEIGHT

Genset model: TS-VPG25  Power kWe / kVA: 20 kWe / 25 kVA
Frequency: 50 Hz Amperage: 36 A
Phases: 1 Voltage: 400 / 230 V
Total lenght with canopy: 1316,5 mm  Total height with canopy: 800 mm
Total width with canopy: 705 mm  Dry weight with canopy: 540 kg

FUEL SYSTEM DETAILS

Consumption 24%: 2,4 L/H  Fuel type: Diesel
Consumption 50%: 4,0 L/H  Fuel standards: Fueloil diesel ASTM
Consumption 75%: 5,7 L/H  Injection pump type: In-line
Consumption 100%: 7,6 L/H  Governor type: Electronic type governor

ELECTRICAL SYSTEM

Electrical system voltage: 12 V Battery charger absorbed power 0,5 kW
Starter power 3 kW Battery charger current 35 A
Max. electric resistance of starting circuit 0.004 Ω Min. sectional area of wire 50 mm2

ENGINE DESCRIPTION

Engine brand: Moteurs Baudouin
No of the cylinders / Valves 4/8
Engine RPM 1500
Number of cylinders 4
Displacement (L) 2,3
Oil capacity min/max (L) 7,1 / 9,5
Compression ratio 17,5:1
Net engine output (PRP*) 29 kWm PRP
Bore&Stroke 89 x 92 mm
Injection system Mechanical and direct
Cooling system Combined heat exchanger and wet exhaust manifold
Intake system Turbocharged
Flywheel housing SAE 3
Flywheel 11.5’’

ALTERNATOR DESCRIPTION

Brand NSM
Model ZB132LA
AVR Type AVR 625D
Number of poles 6
Insulation class H
IP protection 23
Cos 0,8
Tropicalized Yes

CONTROL SYSTEM

Brand COMAP
Power supply range : 8-36 VDC
Protection degree: IP 65
Key features: 8 binary outputs, 8 + 1 binary inputs, 4 analog inputs
RS485, 2slots for extension plug-in mod. (Modbus,Internet,SMS)
Extension CAN Module
Remote Display Option
Local / Remote Switch
On / Off Switch
Emergency Stop Button
Certifications and standards: EN 61000-6-2 , EN61000-6-4 , EN61010-1
Operation temperature: -20°C to +70 °C
Control cabinet dimension (mm): 300 x 350 x 170

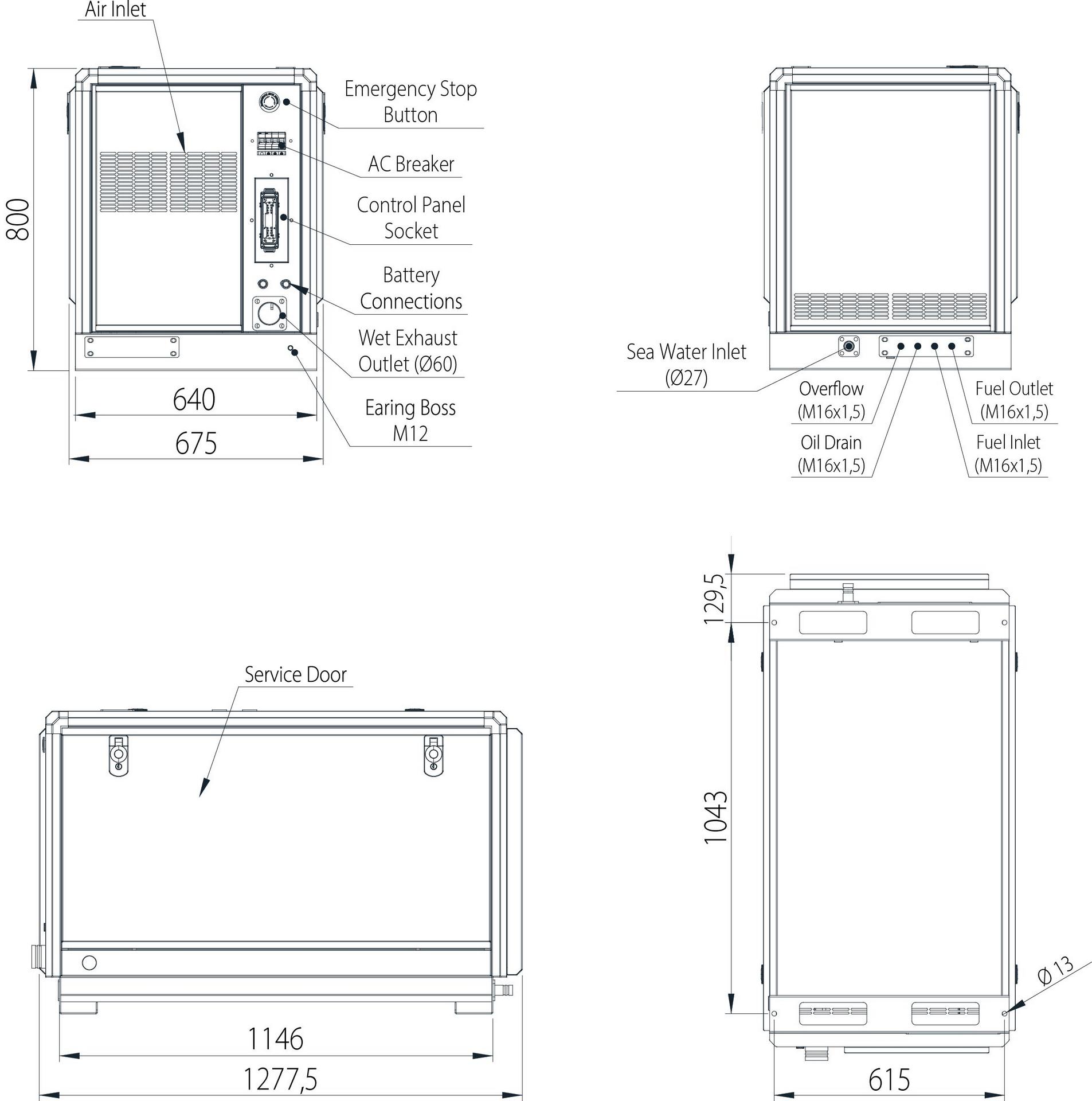

TECHNICAL DRAWİNG
