TS-VPG80

64 kWe / 80 kVA

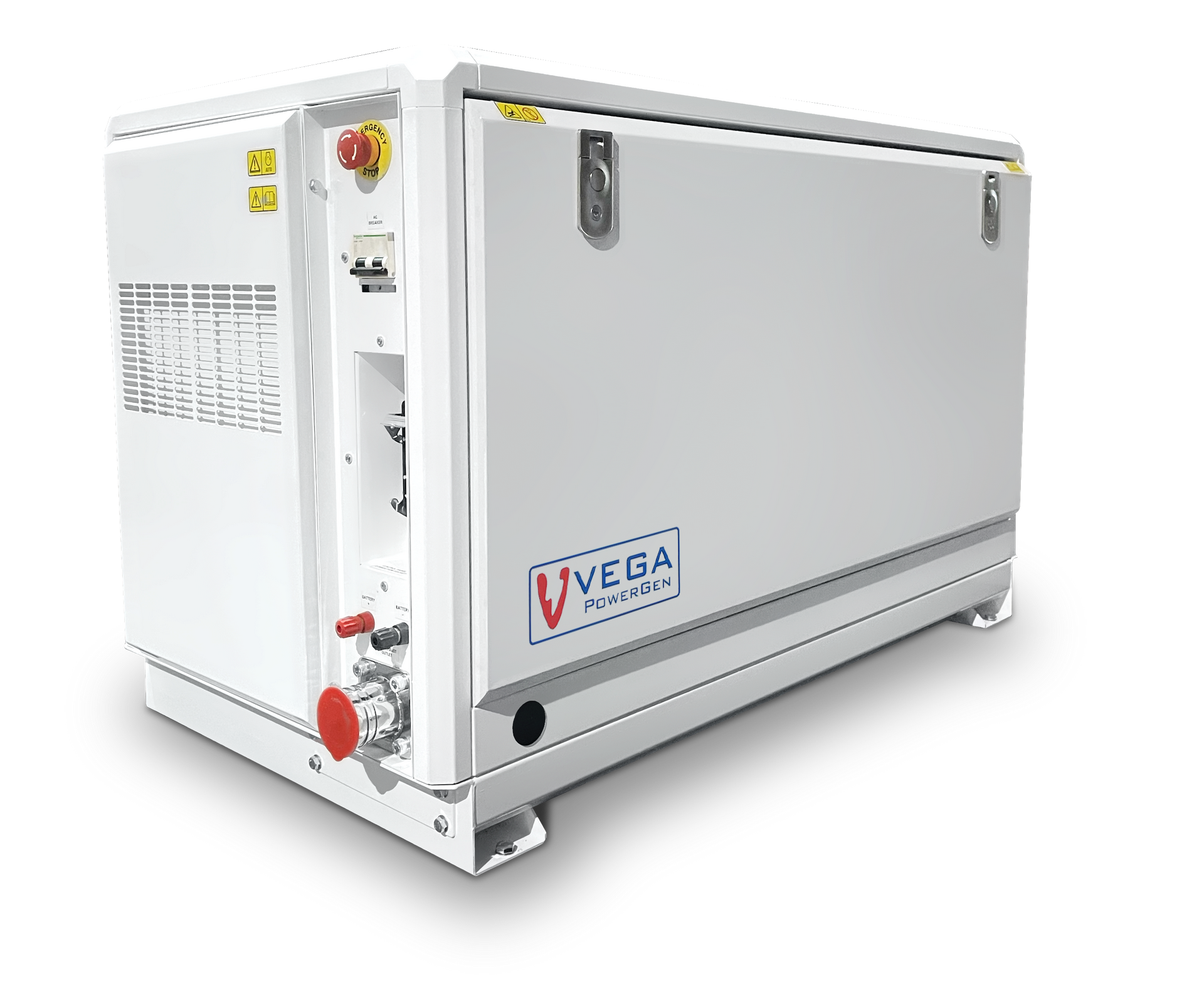

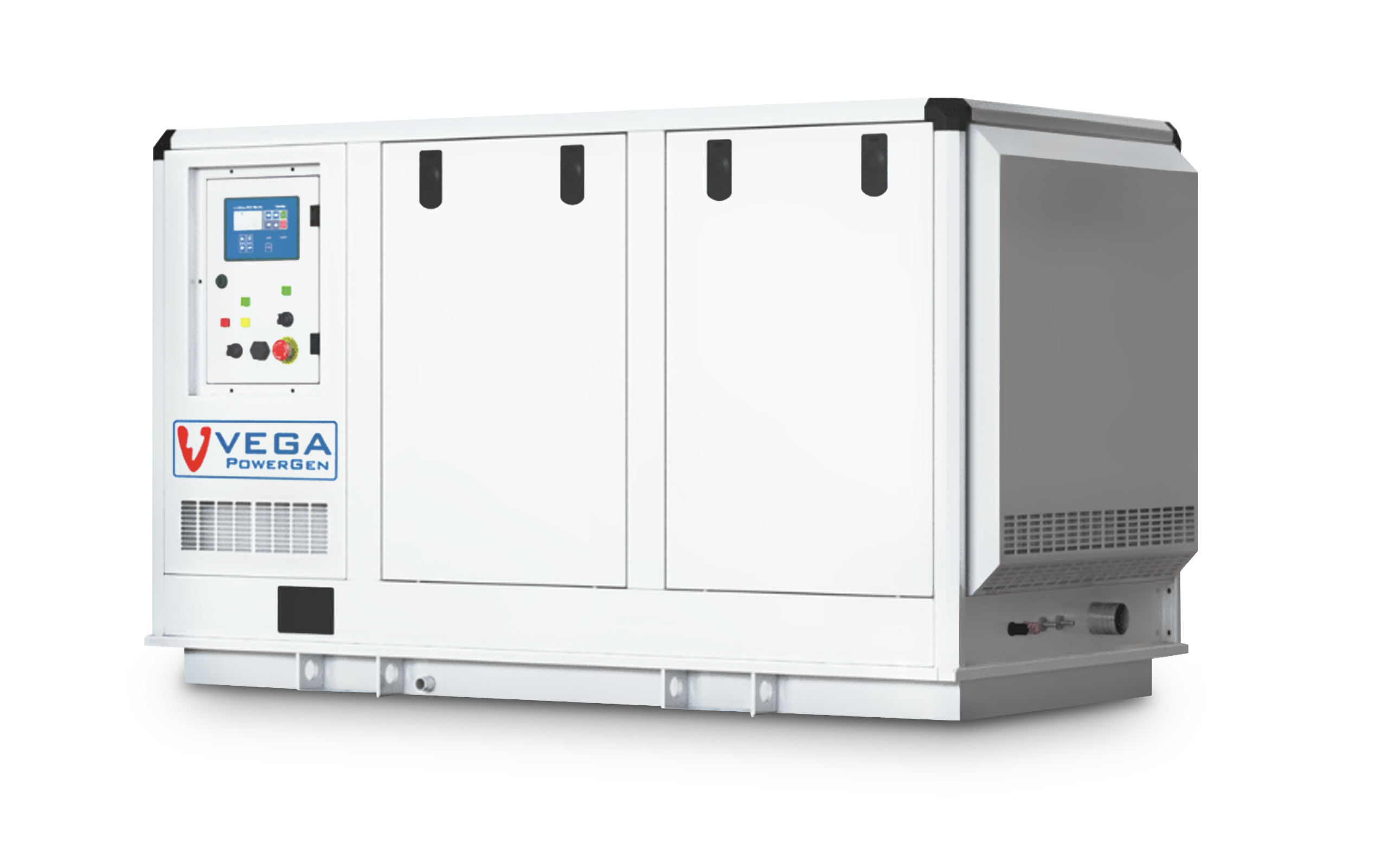

Marine Generator Set

GENERAL INFORMATIONS

Genset model: ​​TS-VPG80
Power kWe / kVA:  ​​64 kWe / 80 kVA
Frequency: ​50 Hz
Amperage: ​​115 A
Phases: 3
Voltage: ​​400 / 230 V

  • –

DIMENSION AND WEIGHT
  • –
    Total lenght with canopy: 1882,5 mm
  • –
    Total height with canopy: ​​​​​​1092 mm
  • –
    Total width with canopy:  910 mm
  • –
    Dry weight with canopy: 1250 kg
FUEL SYSTEM DETAILS
  • –
    Consumption 24%: ​5 L/H
  • –
    Consumption 50%: ​​8 L/H
  • –
    Consumption 75%: 12 L/H
  • –
    Consumption 100%:​ ​​​​16 L/H
  • –
    Fuel type: Diesel
  • –
    Fuel standards: Fueloil diesel ASTM
  • –
    Injection pump type: In-line
  • –
    Governor type: Electronic type governor
ELECTRICAL SYSTEM
  • –
    Electrical system voltage: ​24 V
  • –
    Starter power: ​6 kW
  • –
    Max. electric resistance of starting circuit: TBC
  • –
    Battery charger absorbed power: ​TBC
  • –
    Battery charger current: ​55 A
  • –
    Min. sectional area of wire: ​TBC
ENGINE DESCRIPTION

Engine brand: Moteurs Baudouin
No of the cylinders / Valves: 4/8
Engine RPM: 1500
Number of cylinders: 4
Displacement (L): 4,5
Oil capacity min/max (L): 13
Compression ratio: 18:1
Net engine output (PRP*):  70 kWm PRP
Bore&Stroke : ​​105 x 130 mm
Injection system: Mechanical and direct
Cooling system: ​​Heat Exchanger Engine Mounted
Intake system:  Turbocharged
Flywheel housing: SAE 3
Flywheel:  11.5’’

  • –

ALTERNATOR DESCRIPTION

Brand:  Leroy Somer
Model:  LSAM44.3 S3 C6/4
AVR Type: ​​D350
Number of poles: 4
Insulation class: H
IP protection: 23
Cos:  0,8
Tropicalized: Yes

  • –

CONTROL SYSTEM

Brand: COMAP
Power supply range : 8-36 VDC
Protection degree: IP 65
Key features:  8 binary outputs, 8 + 1 binary inputs, 4 analog inputs
RS485, 2slots for extension plug-in mod. (Modbus,Internet,SMS)
Extension CAN Module
Remote Display Option
Local / Remote Switch
On / Off Switch
Emergency Stop Button
Certifications and standards: EN 61000-6-2 , EN61000-6-4 , EN61010-1
Operation temperature: -20°C to +70 °C
Control cabinet dimension (mm): 300 x 350 x 170

  • –

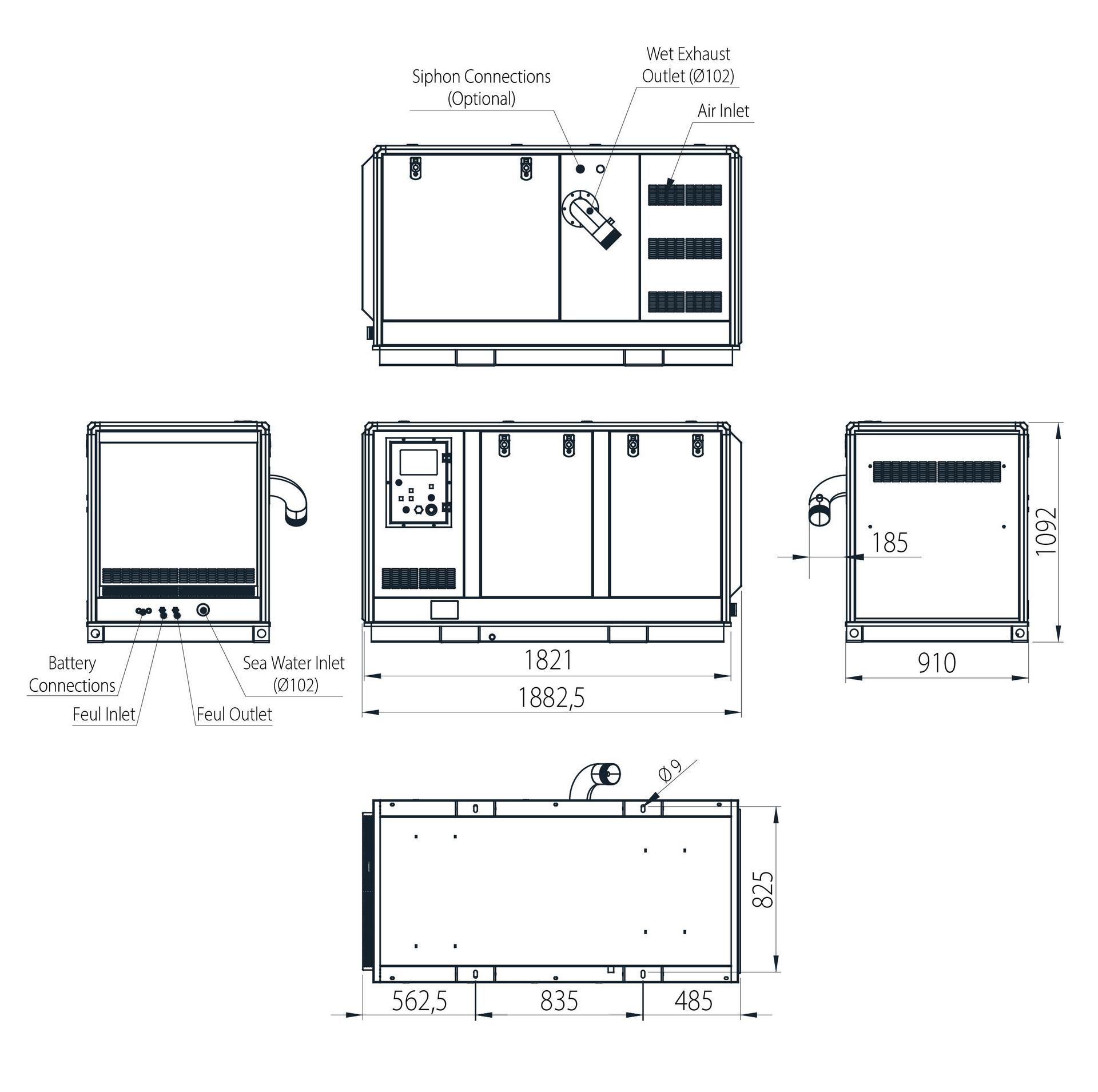

TECHNICAL DRAWİNG
